Modular Plug-&-Play systems
OlenBox
WORLD’ SMARTEST & DENSEST LFP BATTERIES !
OlenBox® systems are a range of batteries that integrate intelligent electronic management boards and cells with exceptional performance.
In the past, this type of battery was extremely expensive and reserved for the most specific applications, as it was equipped with first-class chemistry and was reserved for a niche.
But the arrival of the French OlenBox storage systems is changing the established standards.
High quality lithium cells
+ Electronic management card – BMS – Olenergies
+ Power components for total safety
+ Up to 24V in series and ILLIMITED parallels without external BMS !
+ Sealed ABS case with standard lead battery sizes
+ Leakproof system (IP66)
+ Zero maintenance
= OLENBOX MADE IN FRANCE
High quality lithium cells
+ Electronic management card – BMS – Olenergies
+ Power components for total safety
+ Up to 24V in series and ILLIMITED parallels without external BMS !
+ Sealed ABS case with standard lead battery sizes
+ Leakproof system (IP66)
+ Zero maintenance
= OLENBOX MADE IN FRANCE
By designing modular and Plug-&-Play batteries (the electronic board automatically takes care of the system management) we have succeeded in developing a high-end battery at an affordable price and even cheaper than lead batteries in cost !
Many elements make OlenBox® batteries the best solution on the market for stationary or traction applications;
- A premium energy storage cell technology offering the highest security and one of the longest lifetimes on the market,
- A MADE IN FRANCE product, guaranteed for 5 years,
- The most compact LFP batteries in the world in terms of size/energy ratio (for the M & L range),
- An intelligent and robust electronic management board integrated in all systems,
- A robust, light and waterproof (IP65) case ready for any situation,
- A range of SMART batteries with Bluetooth (+application) and wired (RS485) connectivity,
- Many hardware and software accessories (gauge indicator, cloud monitoring, battery management…),
- Batteries dedicated to hot and very cold environments (with HEAT preheating option),
- Unlimited assembling of batteries in parallel and in series up to 24V !

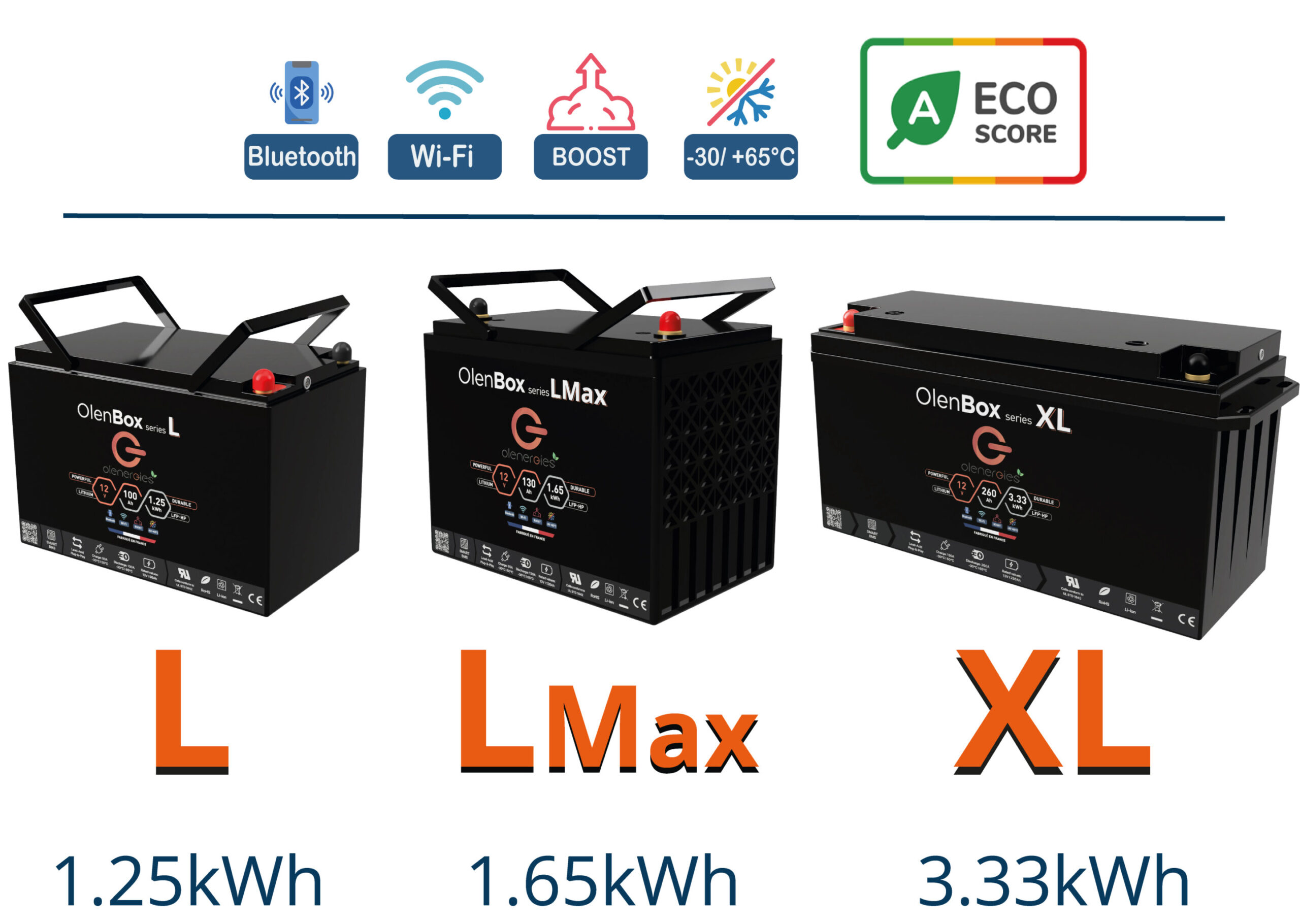

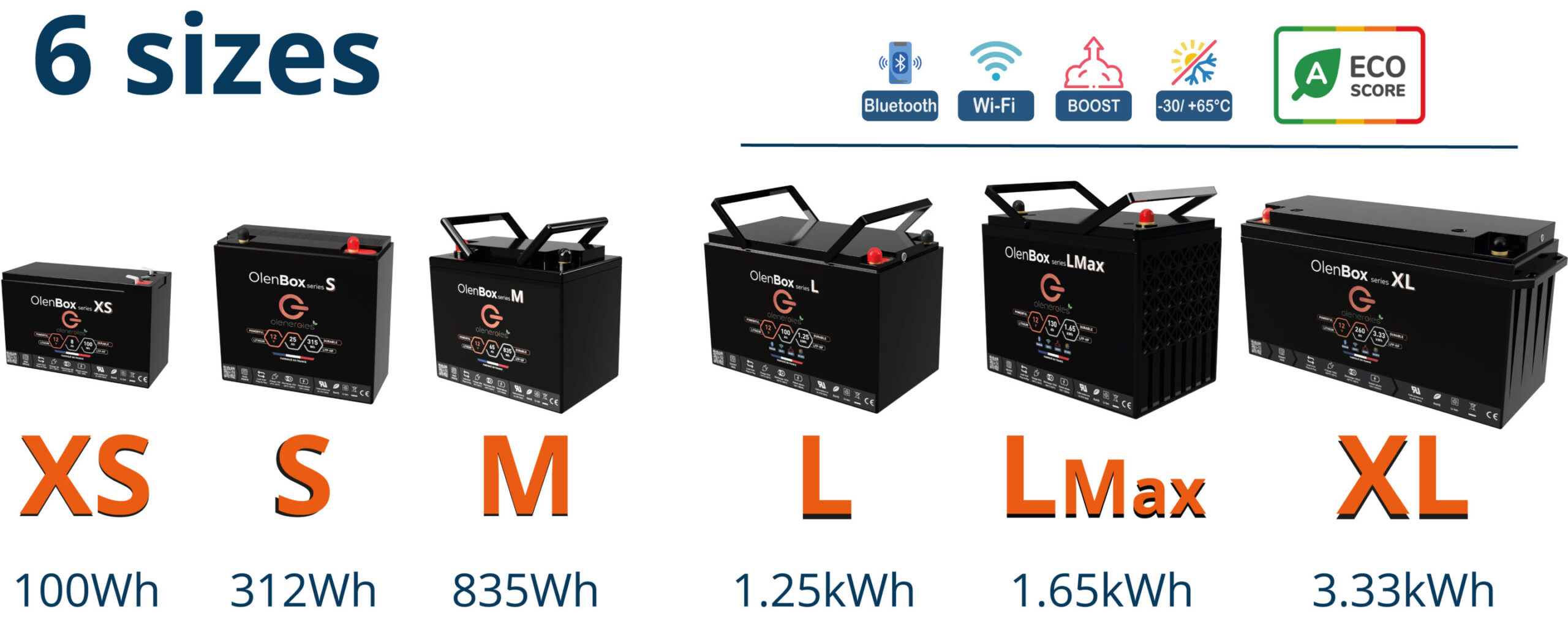

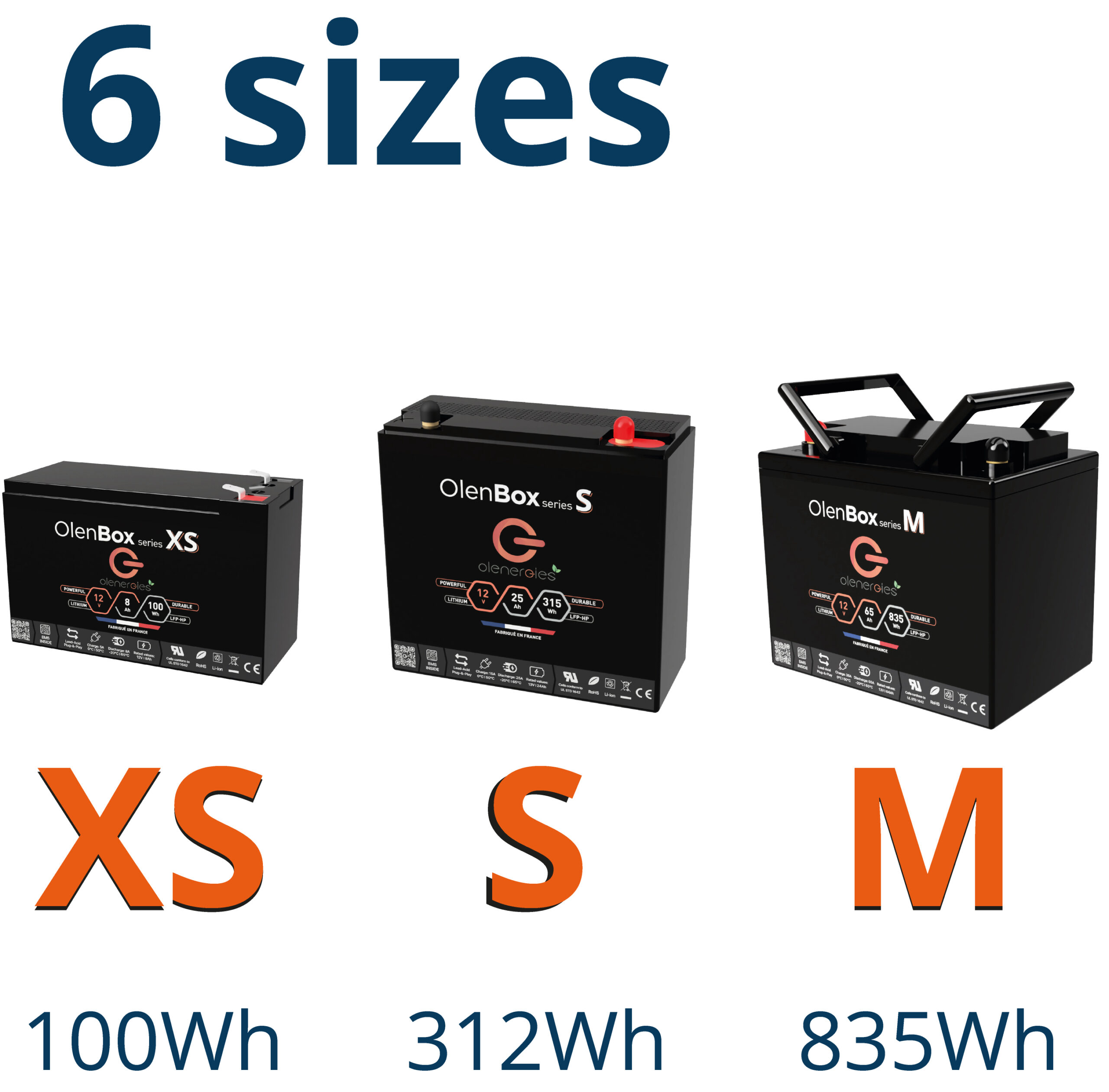

New 2023 OlenBox range !
You can move from left to right in the table
Become reseller
Download the 3D models of the batteries
to ensure its integration into your equipment:
Click on the image
to download your 3D step model
| SERIES PRO | IMAGE | SMART | SHEET | VOLTAGE | CAPACITY | POWER | Dimensions (L*l*H) | Weight | Bluetooth/Wifi | Cold weather battery (HEAT) | Smartshunt compatible | Merlin compatible |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| V | Ah | A | cm | kg | ||||||||
| XS |  |  | 12V | 10 Ah | 5 A | 15.1*6.5*9.6 | 0,9 kg | No | No | Yes | Yes via Smartshunt | |

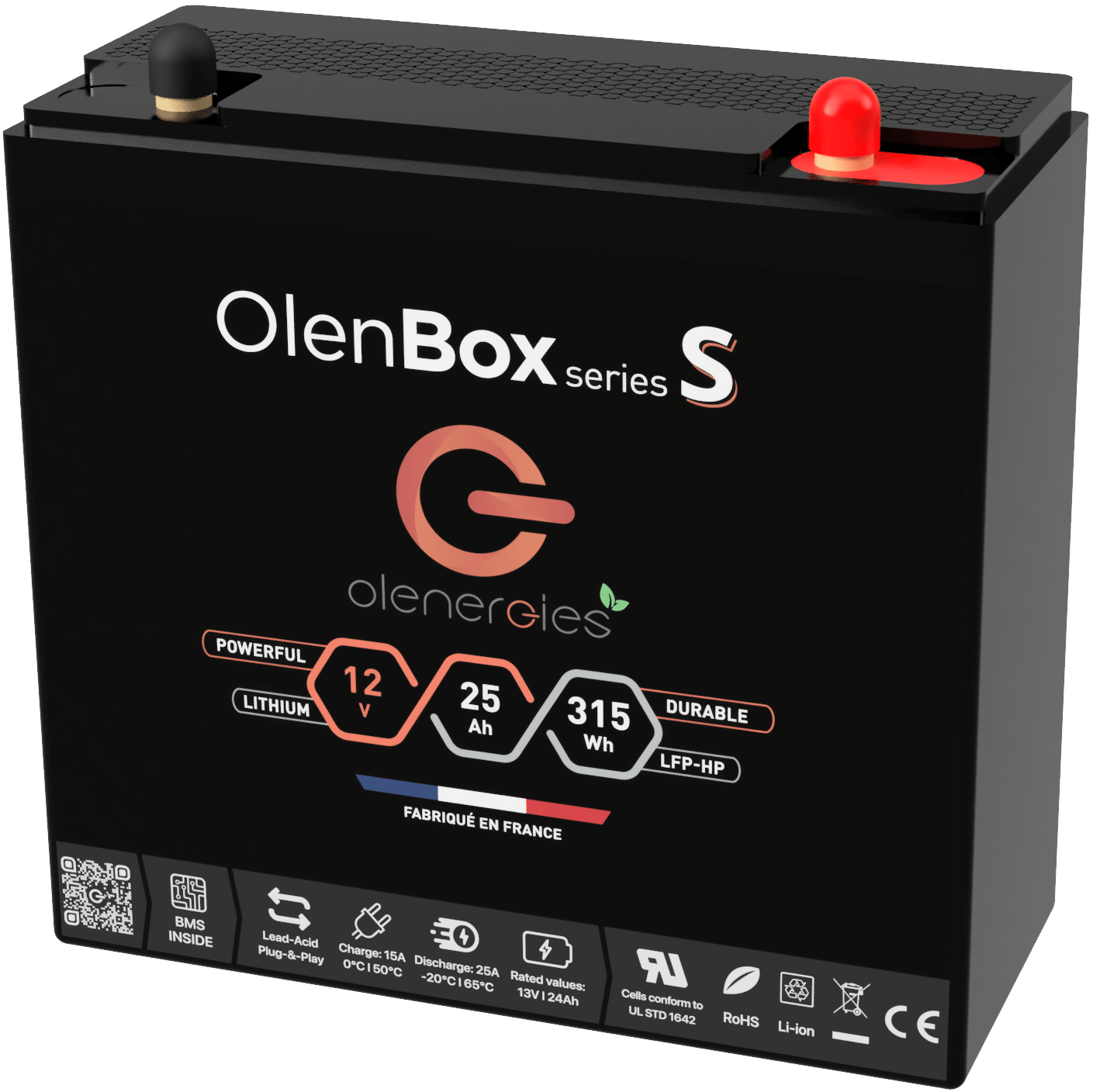

| S |  | | 12V | 30 Ah | 30 A | 18.1*7.7*16.9 | 2,7 kg | No | No | Yes | Yes via Smartshunt | |

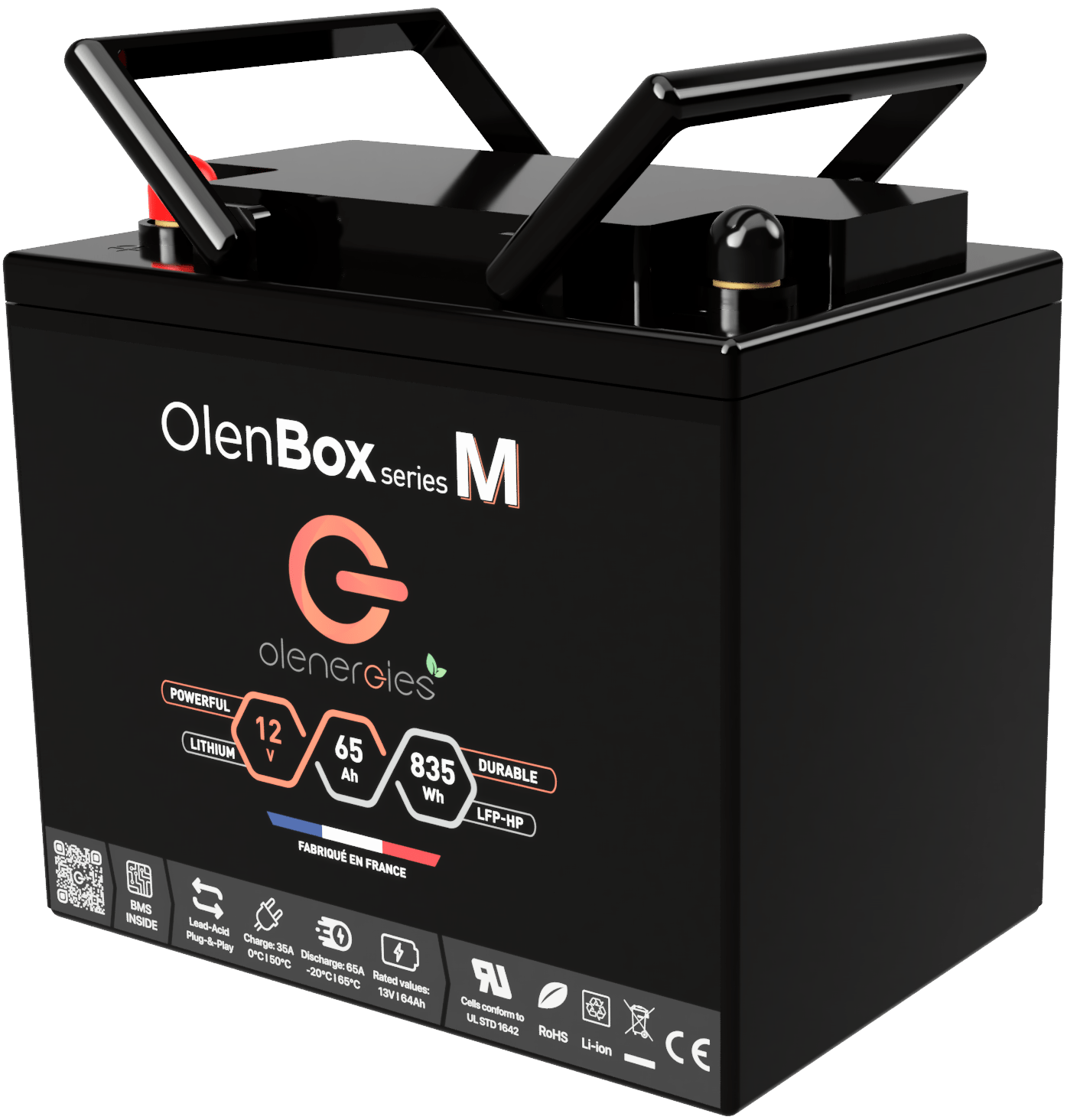

| M |  | | 12V | 60 Ah | 60 A | 19.5*13.4*17.2 | 6,5 kg | No | No | Yes | Yes via Smartshunt | |

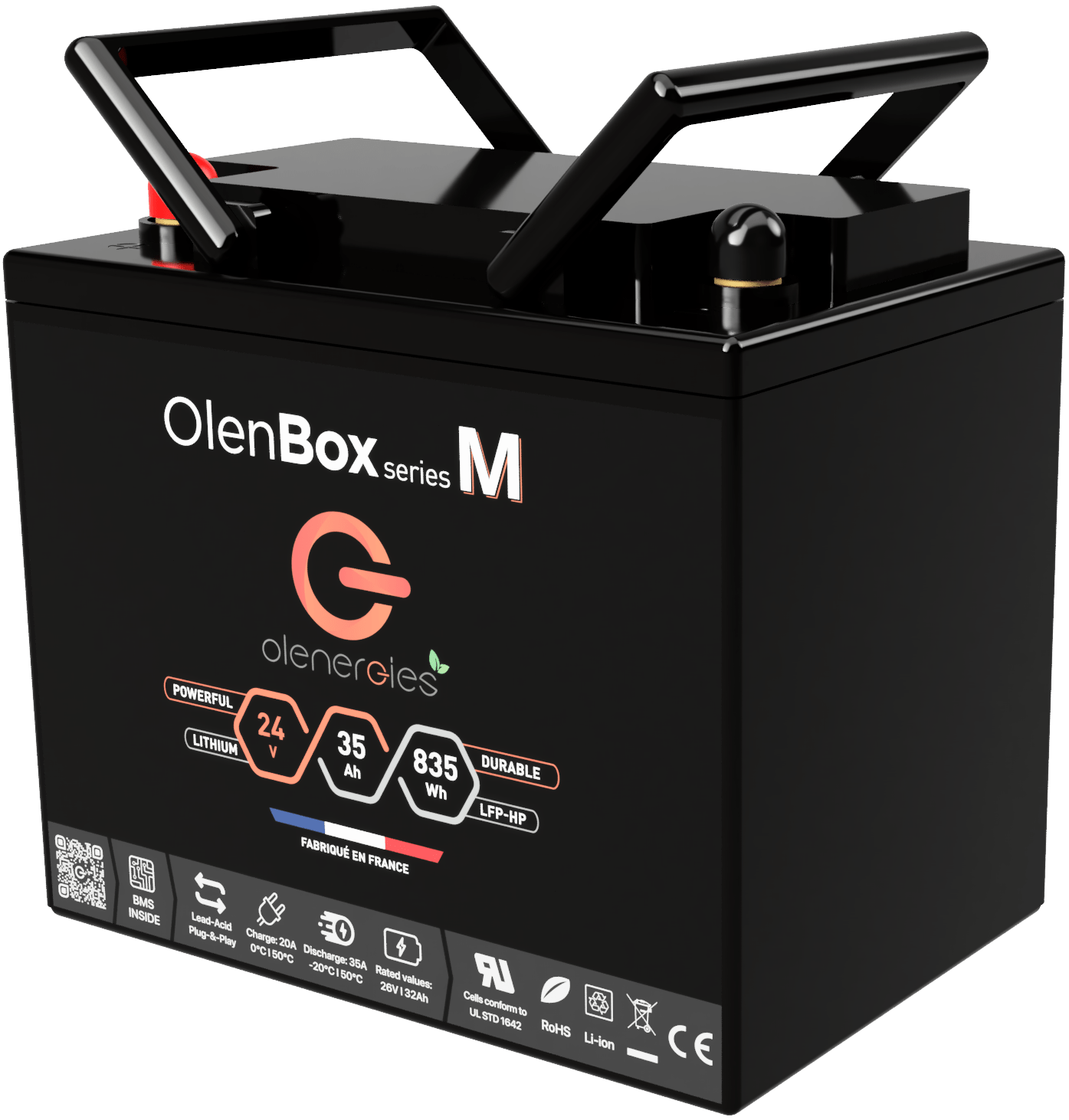

| M |  | | 24V | 30 Ah | 30 A | 19.5*13.4*17.2 | 6,5 kg | No | No | Yes | Yes via Smartshunt | |
| L |  |  | | 12V | 120 Ah | 100 A | 25.9*15.1*17.7 | 9,9 kg | Yes | Yes | Yes | Yes (native) |
| L |  | | | 24V | 60 Ah | 60 A | 25.9*15.1*17.7 | 9,9 kg | Yes | Yes | Yes | Yes (native) |

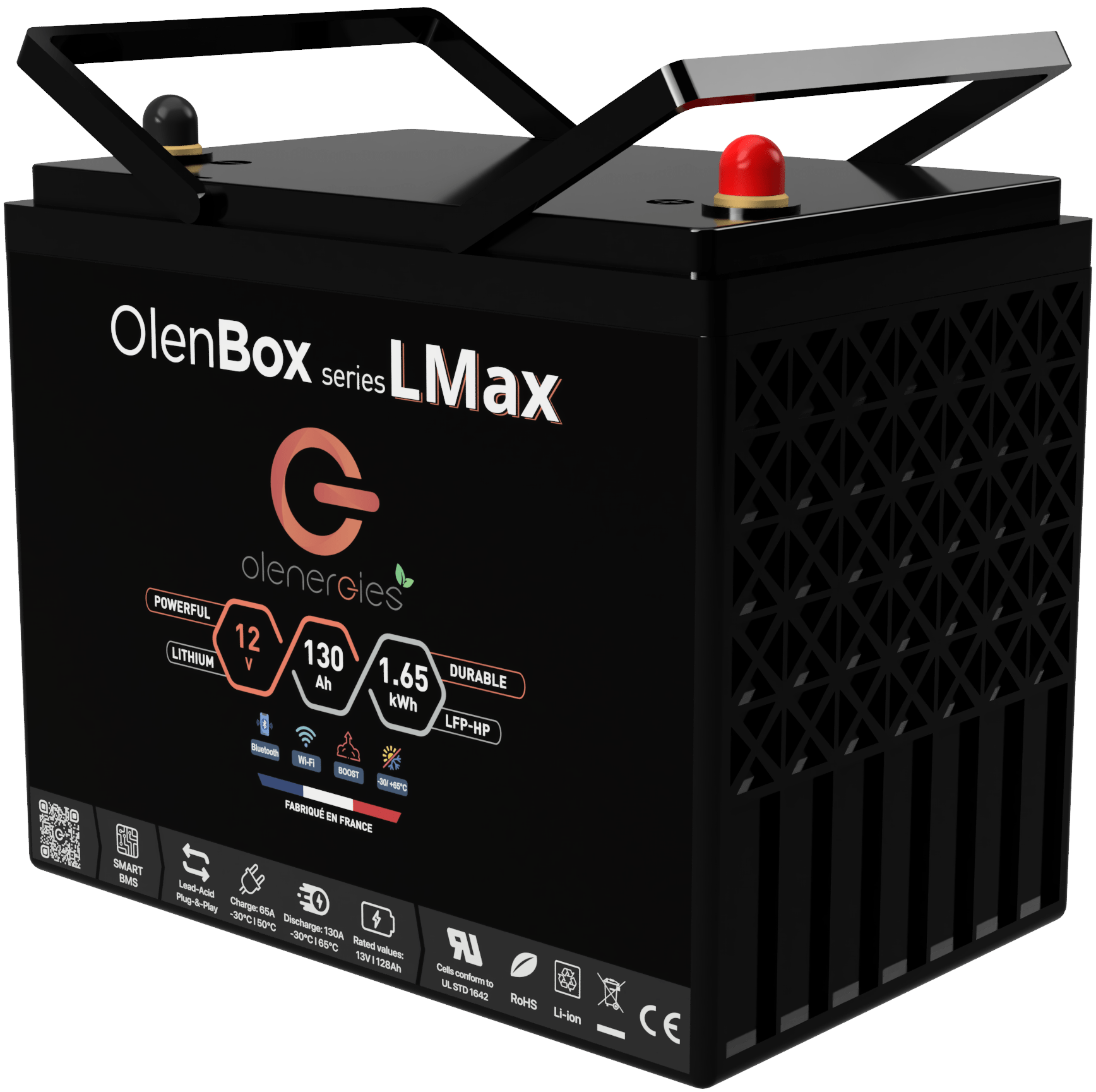

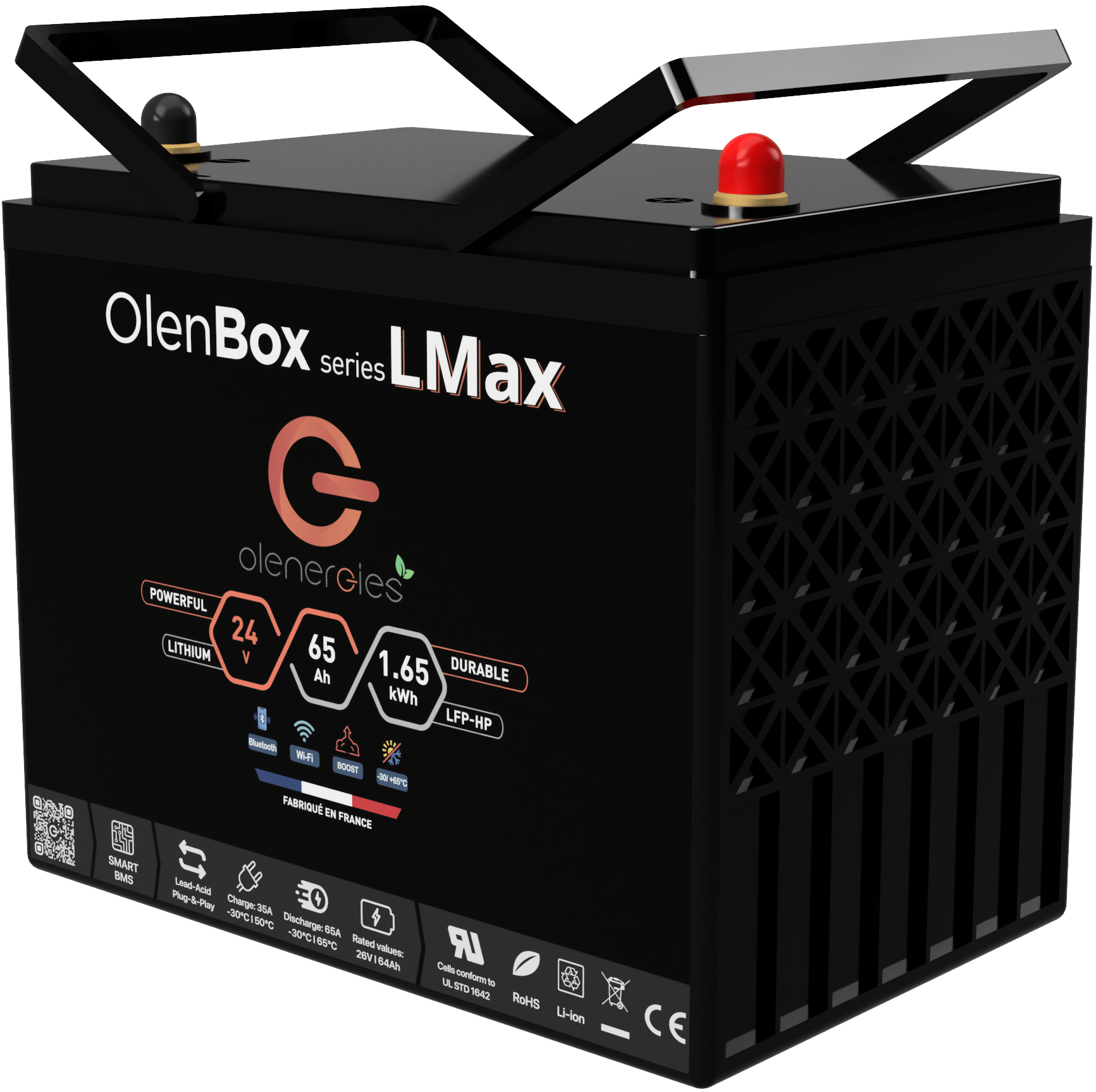

| LMax |  | | | 12V | 160 Ah | 100 A | 26*16.9*21.2 | 14 kg | Yes | Yes | Yes | Yes (native) |
| LMax |  | | | 24V | 80 Ah | 60 A | 26*16.9*21.2 | 14 kg | Yes | Yes | Yes | Yes (native) |
| LMax |  | | | 48V | 40 Ah | 40 A | 26*16.9*21.2 | 14 kg | Yes | Yes | Yes | Yes (native) |

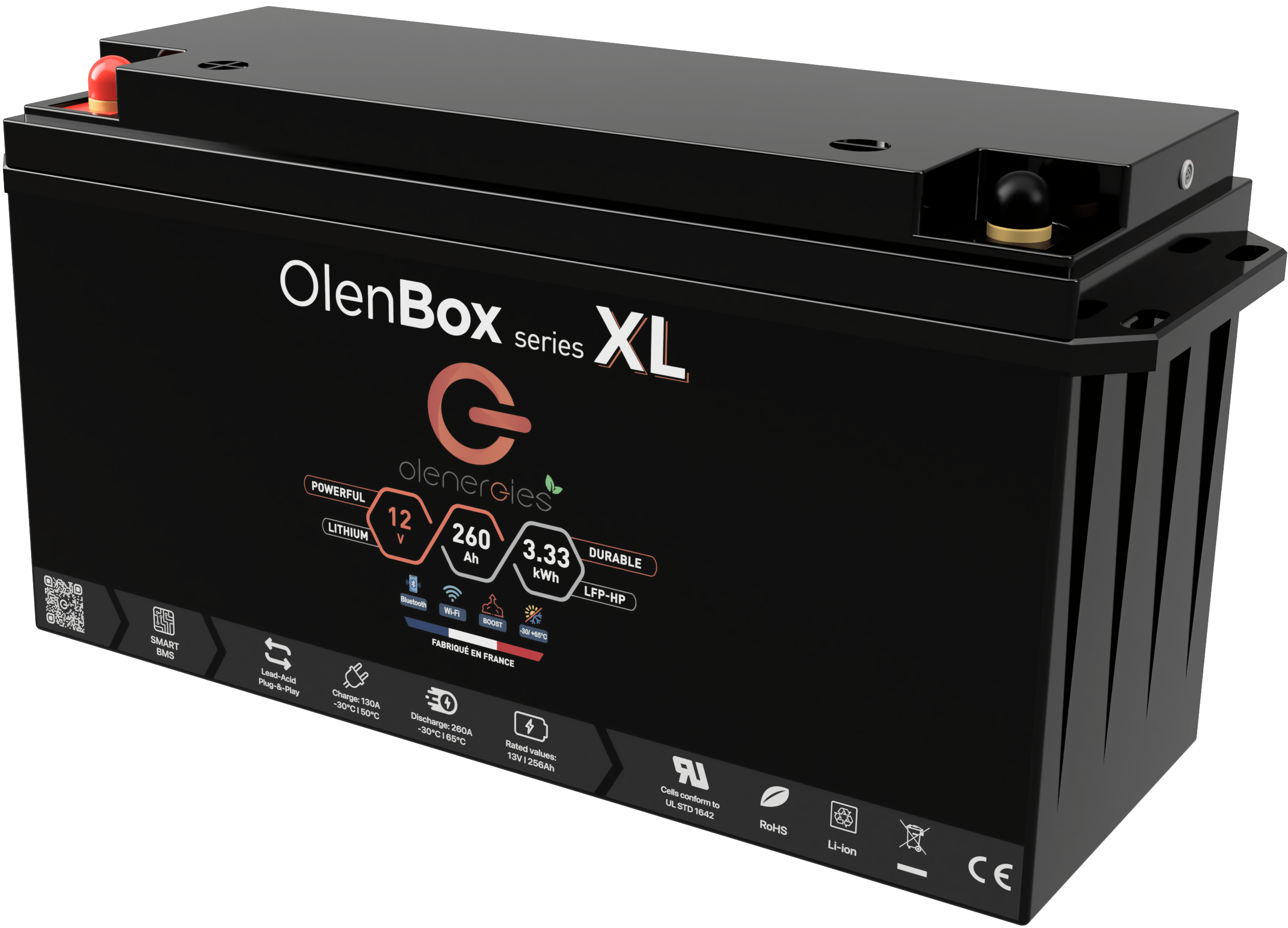

| XL |  | | | 12V | 320 Ah | 250 A | 48.5*17*24 | 28 kg | Yes | Yes | Yes | Yes (native) |

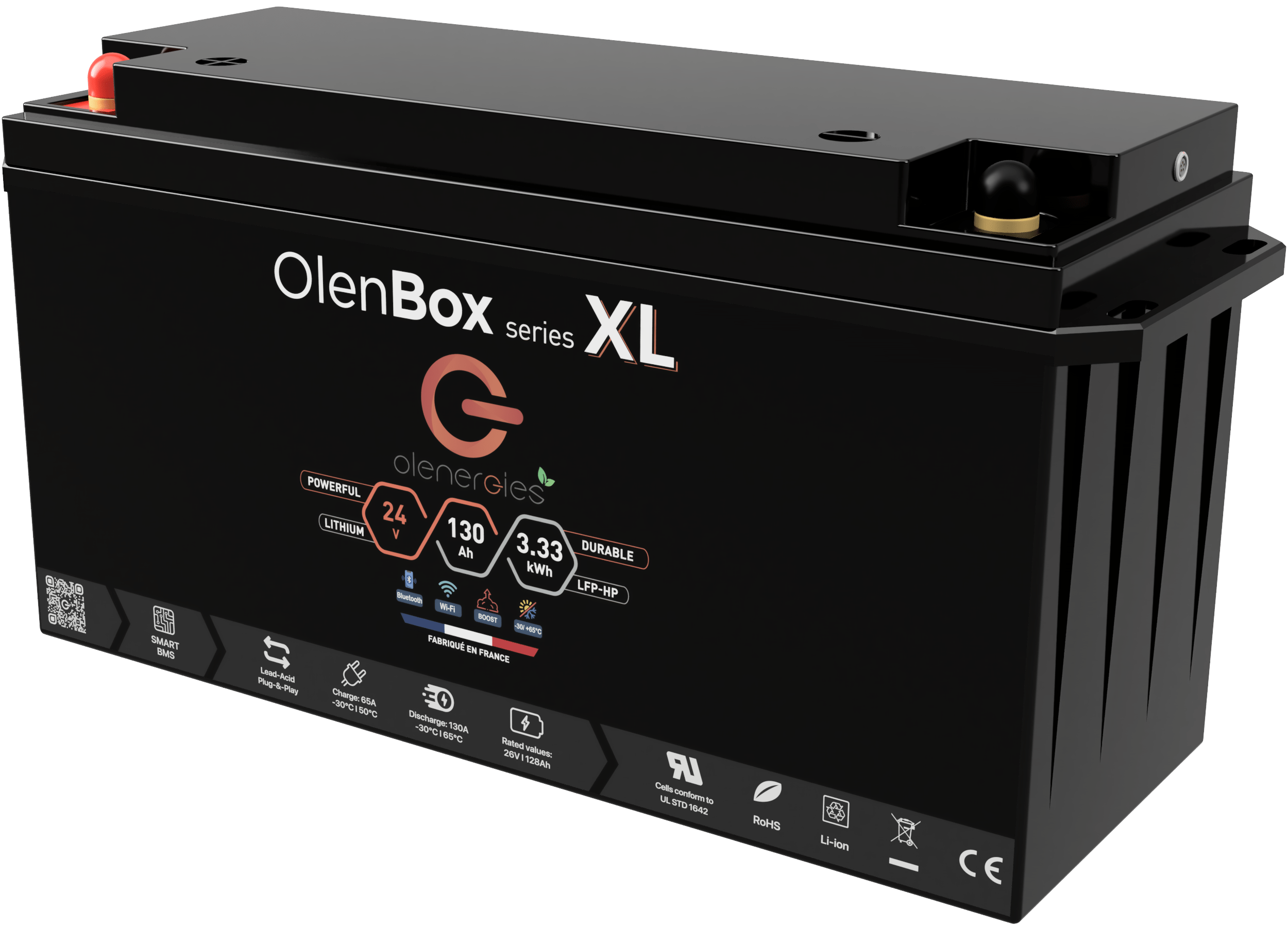

| XL |  | | | 24V | 160 Ah | 160 A | 48.5*17*24 | 28 kg | Yes | Yes | Yes | Yes (native) |

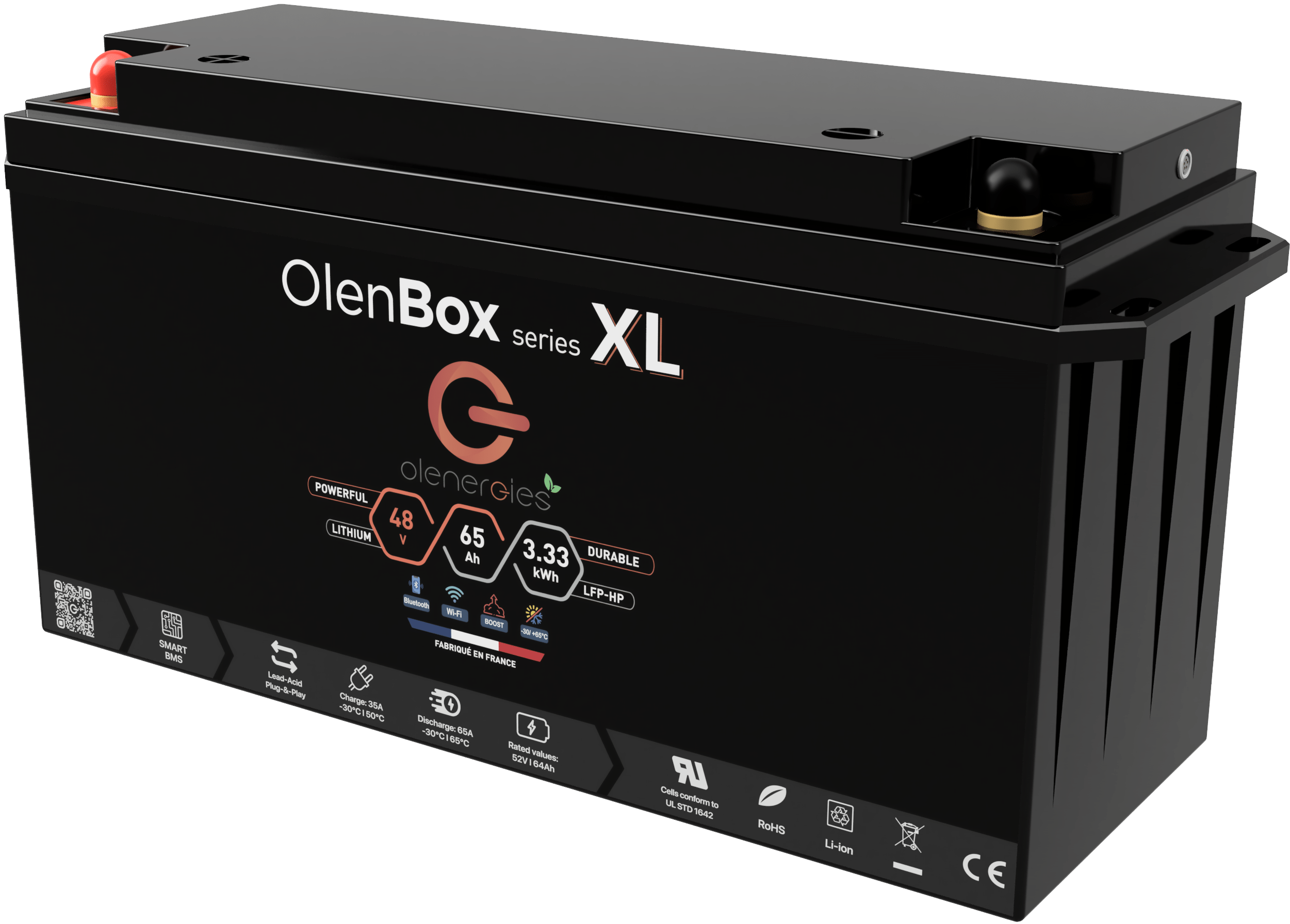

| XL |  | | | 48V | 80 Ah | 120 A | 48.5*17*24 | 28 kg | Yes | Yes | Yes | Yes (native) |
| SERIES | IMAGE | SMART | SHEET | V | Ah | A | cm | kg |
| SERIES PRO | IMAGE | SMART | SHEET | VOLTAGE | CAPACITY | POWER | Dimensions (L*l*H) | Weight | Bluetooth/Wifi | Cold weather battery (HEAT) | Smartshunt compatible | Merlin compatible |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| V | Ah | A | cm | kg | ||||||||
| XS | | | 12V | 10 Ah | 5 A | 15.1*6.5*9.6 | 0,9 kg | No | No | Yes | Yes via Smartshunt | |
| S | | | 12V | 30 Ah | 30 A | 18.1*7.7*16.9 | 2,7 kg | No | No | Yes | Yes via Smartshunt | |
| M | | | 12V | 60 Ah | 60 A | 19.5*13.4*17.2 | 6,5 kg | No | No | Yes | Yes via Smartshunt | |
| M | | | 24V | 30 Ah | 30 A | 19.5*13.4*17.2 | 6,5 kg | No | No | Yes | Yes via Smartshunt | |
| L | | | | 12V | 120 Ah | 100 A | 25.9*15.1*17.7 | 9,9 kg | Yes | Yes | Yes | Yes (native) |
| L | | | | 24V | 60 Ah | 60 A | 25.9*15.1*17.7 | 9,9 kg | Yes | Yes | Yes | Yes (native) |
| LMax | | | | 12V | 160 Ah | 100 A | 26*16.9*21.2 | 14 kg | Yes | Yes | Yes | Yes (native) |
| LMax | | | | 24V | 80 Ah | 60 A | 26*16.9*21.2 | 14 kg | Yes | Yes | Yes | Yes (native) |
| LMax | | | | 48V | 40 Ah | 40 A | 26*16.9*21.2 | 14 kg | Yes | Yes | Yes | Yes (native) |
| XL | | | | 12V | 320 Ah | 250 A | 48.5*17*24 | 28 kg | Yes | Yes | Yes | Yes (native) |
| XL | | | | 24V | 160 Ah | 160 A | 48.5*17*24 | 28 kg | Yes | Yes | Yes | Yes (native) |
| XL | | | | 48V | 80 Ah | 120 A | 48.5*17*24 | 28 kg | Yes | Yes | Yes | Yes (native) |
| SERIES | IMAGE | SMART | SHEET | V | Ah | A | cm | kg |
Charger Range
All chargers are compatible with all our batteries except the XL range charger with the OlenBox S battery.
However, it is recommended to choose a charger of the same category or less to optimize the battery.
For example, for an OlenBox L battery choose a charger from the XS, S, M or L range.
| Ref | Photo | Data sheet | Voltage | Capacity | Power | Auto Restart | Dimensions (L*W*H) | Weight | |
|---|---|---|---|---|---|---|---|---|---|
| V | A | W | ✓ / X | mm | kg | ||||
| XS | CH-S12V5A-R |  |  | 12V | 5A | 73W | ✓ | 135 x 90 x 50 mm | 0,8 kg |
| S | CH-S12V15A-R |  | | 12V | 15A | 218W | ✓ | 135 x 90 x 50 mm | 1,0 kg |
| M | CH-M12V25A-R |  | | 12V | 25A | 363W | ✓ | 173 x 90 x 63 mm | 1,35 kg |
| M | CH-M24V10A-R |  | | 24V | 10A | 290W | ✓ | 135 x 90 x 50 mm | 1,0 kg |
| L | CH-L12V40A-R |  | | 12V | 40A | 580W | ✓ | 220 x 120 x 70 mm | 2,1 kg |
| L | CH-L24V15A-R |  | | 24V | 15A | 435W | ✓ | 173 x 90 x 51 mm | 1,1 kg |
| L | CH-L48V10A-R |  | | 48V | 10A | 580W | ✓ | 173 x 90 x 63 mm | 1,35 kg |
| XL | CH-XL12V50A-R |  | | 12V | 50A | 725W | ✓ | 260 x 158 x 92 mm | 3,84 kg |
Charger Range
All chargers are compatible with all our batteries except the XL range charger with the OlenBox S battery.
However, it is recommended to choose a charger of the same category or less to optimize the battery.
For example, for an OlenBox L battery choose a charger from the XS, S, M or L range.
You can move from left to right in the table
| Ref | Photo | Data sheet | Voltage | Capacity | Power | Auto Restart | Dimensions (L*W*H) | Weight | |
|---|---|---|---|---|---|---|---|---|---|
| V | A | W | ✓ / X | mm | kg | ||||
| XS | CH-S12V5A-R | | | 12V | 5A | 73W | ✓ | 135 x 90 x 50 mm | 0,8 kg |
| S | CH-S12V15A-R | | | 12V | 15A | 218W | ✓ | 135 x 90 x 50 mm | 1,0 kg |
| M | CH-M12V25A-R | | | 12V | 25A | 363W | ✓ | 173 x 90 x 63 mm | 1,35 kg |
| M | CH-M24V10A-R | | | 24V | 10A | 290W | ✓ | 135 x 90 x 50 mm | 1,0 kg |
| L | CH-L12V40A-R | | | 12V | 40A | 580W | ✓ | 220 x 120 x 70 mm | 2,1 kg |
| L | CH-L24V15A-R | | | 24V | 15A | 435W | ✓ | 173 x 90 x 51 mm | 1,1 kg |
| L | CH-L48V10A-R | | | 48V | 10A | 580W | ✓ | 173 x 90 x 63 mm | 1,35 kg |
| XL | CH-XL12V50A-R | | | 12V | 50A | 725W | ✓ | 260 x 158 x 92 mm | 3,84 kg |
Become reseller
OlenBox batteries are always the first choice for energy storage applications
RVs
Golf cart
Recreational vehicles
Electric boats
Licence-free cars
Handling equipment
Automated Vehicles (AGV)
Security and surveillance
Remote power supply
Telecommunications
DC microgrid
Mining industry
Industrial needs
Energy storage
Renewable energies
Electric vehicles
Emergency power supply
UniFi Switch Mission Critical
Instrumentation
Agriculture …
?Drop-in replacement of lead batteries; you connect and it works !
?Illimited parallels assemby without external BMS !
